7SIGNAL Sensors
Optimizing enterprise Wi‑Fi and digital experiences for end‑users
Designed to optimize Wi‑Fi 4, 5 & 6 networks.

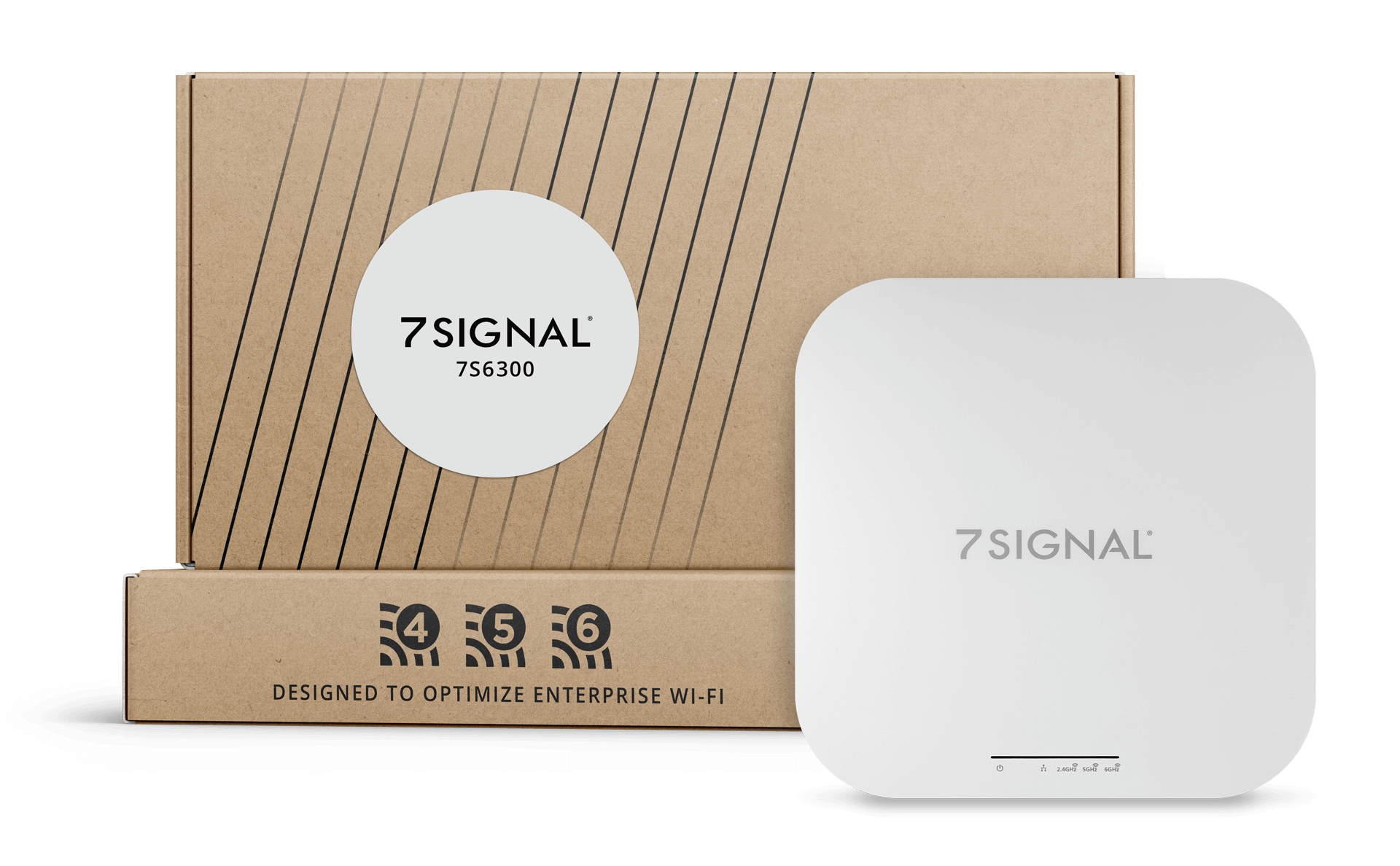

The 7S6300 Wi‑Fi Performance Sensor
The 7SIGNAL® platform uses multiple data sources to provide insight into Wi‑Fi Health. The 7S6300 is a vendor‑agnostic Wi‑Fi and RF sensor that acts as a perfect client on the network. The sensor collects and analyzes coverage, congestion, interference and connectivity data from the environment and sends it to the cloud where it is displayed within the 7SIGNAL platform dashboard or shared via API with other tools. The 7S6300 is engineered for 802.11 a/b/g/n/ac/ax environments and fully supports Wi‑Fi 4/5/6/6E.
Learn what 7SIGNAL can do for you
Explore how sensors deliver complete visibility with synthetic and active testing across layers 1–7.
-
Eliminate Wi‑Fi visibility gaps
-
Mitigate risk associated with connectivity failure
-
Gain end‑user experience impact data
-
Identify root cause of connectivity problems
-
Reduce mean time to resolution
Empowering the Connected Enterprise
SYNTHETIC AND ACTIVE TESTS FOR LAYERS 1–7 OF YOUR NETWORK
- Compatible with any access point on any network
- Full spectrum analyzer in all 3 bands with packet capture
- Uncover RF and channel interference
- Identify configuration, coverage and congestion issues
A window into Wi‑Fi health
- Understand exactly what devices and users experience
- Eliminate visibility gaps on the network and endpoints
- Automatically create tickets or send problem data to AIOps tools

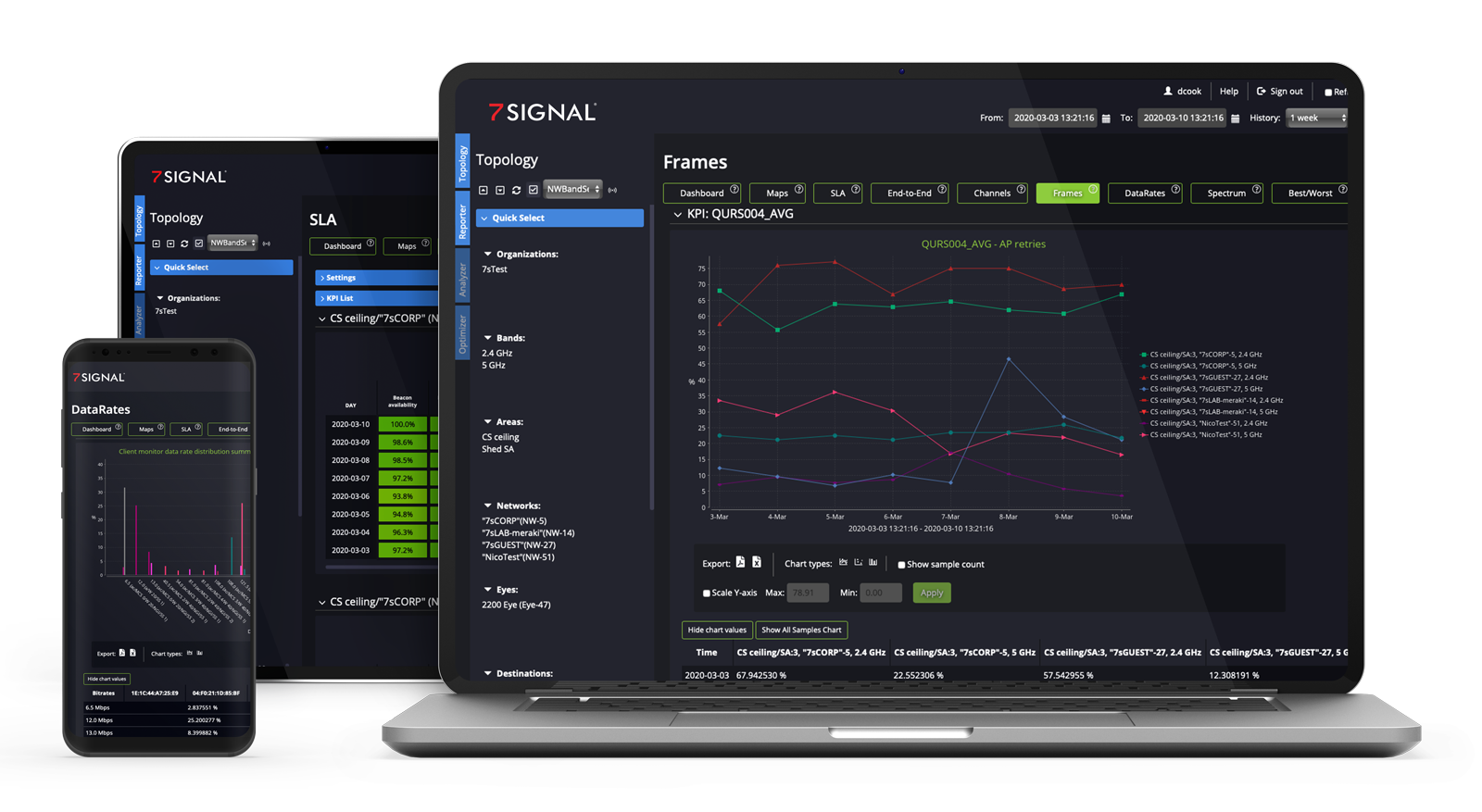

- User‑friendly dashboard and quick access insights
7SIGNAL Sensors vs Access Points
The 7S6300 is not an Access Point—it's a powerful performance sensor that optimizes the wireless environment. A single sensor can monitor up to 6 access points. 7SIGNAL provides added layers of visibility and diagnostic capabilities that WLAN tools don't offer. 7SIGNAL is vendor‑agnostic and provides independent data. It bridges the visibility gap between the infrastructure and end‑user experience, ensuring organizations get the most out of Wi‑Fi and increase business efficiency.
7SIGNAL Sensors vs Infrastructure Monitoring
Unlike IT infrastructure monitoring vendors, 7SIGNAL provides visibility of the Wi‑Fi experience from the end‑user's point of view. 7SIGNAL monitors the edge of the network (Layers 1–7) where the wireless experience matters most.
IDC RESEARCH RETURN ON INVESTMENT
Supported Versions
7S6300 and other 7SIGNAL Sensors are access point and device agnostic and works with all industry-standard platforms. Our customers use a wide range of vendors and devices, including:
- Cisco
- Meraki
- HP/Aruba
- Extreme
- Huawei
- And many others
Related Links
Dive deeper into 7SIGNAL with these insights and resources.
7S6300 WI-FI SENSOR CAPABILITIES
SYNTHETIC TESTS (L2-L7)
- •24x7 Wi-Fi & Ethernet interfaces
- •Beacon, association, authentication, captive portal, DHCP, DNS
- •FTP, PING, HTTP, VOIP
- •Throughput, packet loss, latency, jitter, MOS
- •KPIs for each AP, SSID and Test endpoint
RF ANALYSIS (L1-L2)
- •Full spectrum analysis
- •KPIs for each AP and channel
- •Access point settings, capabilities, signal levels, channels, noise levels
TROUBLESHOOTING
- •Historical data for passive and active tests (90 days)
- •Use APIs to send problem data to dashboards or ticketing systems
- •Actionable data from alarms point to root cause quickly
- •Manual test execution from remote locations
- •Out of band troubleshooting with zero impact to the Wi-Fi environment
Protocol Analysis (L2)
- •Automated passive tests
- •Remote over-the-air (OTA) packet capture
- •KPIs for each client, SSID, AP, and band
- •802.11 frame analysis for traffic flow between clients and access points
- •Statistics for all 802.11 frame types, reason codes and status codes

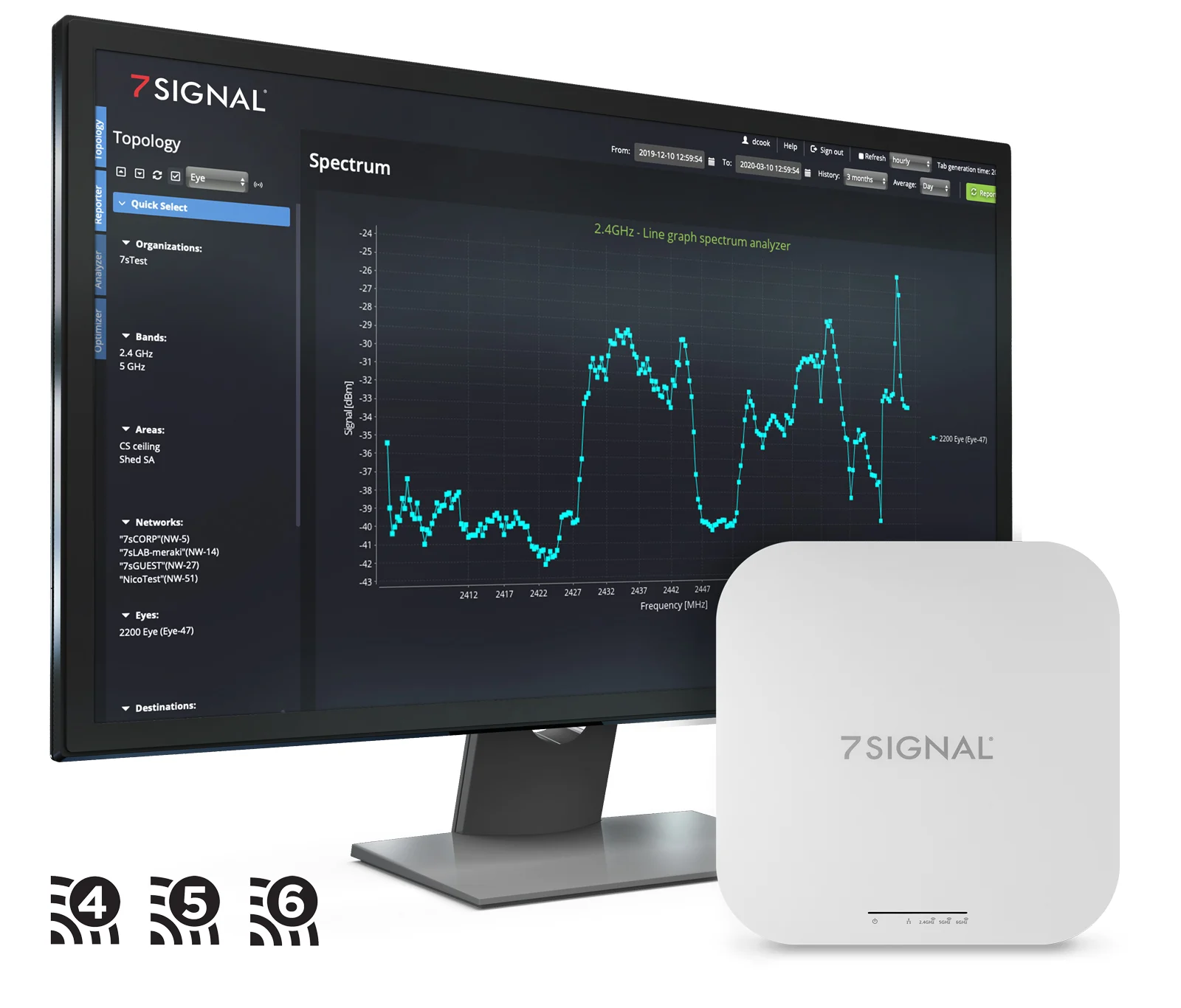

Spectrum Analysis (L1)
- •Automated passive tests
- •High resolution 2.4 GHz, 5 GHz and 6 GHz spectrum analysis
- •Chart types include waterfall, line and 3D
- •Historical spectrum data saved for 2 weeks
Full Packet Capture (L1-L2)
- •Radiotap headers included
- •Easy export to protocol analyzer, like Wireshark.
